The Stainless Steel Box Winch is available for use on flagpoles with butt diameter of 6″ or larger. These gearless winches utilize cast bronze internal brakes which release when a winch handle is inserted and rotational pressure is applied . The winch is locked at any position by removing the handle which engages the brake system.
The winch is mounted to the inside of the flagpole with two 5/16″-18NC stainless steel bolts with mounting centers being 3 1/2″. Recommended diameters of stainless steel cable are 1/8″ or 5/32″. Minimum opening in pole for Small Winch is 4 1/8″ H x 3 1/8″ W, for Large Winch 4 1/8″ H x 3 5/8″ W and for X-Large Winch 4 1/8″ H x 6 5/8″ W. Winch Handle is included in winch price.
The small size is generally used on flagpoles up to 45′
Large size is used on flagpoles from 50′ thru 80′
X-large size is used on flagpoles higher than 80′
Box Winch description & Prices:
Size Drum Width Price
Small 1 1/2″ $ 489
Large 2″ $ 489
X-Large 5″ $ 849

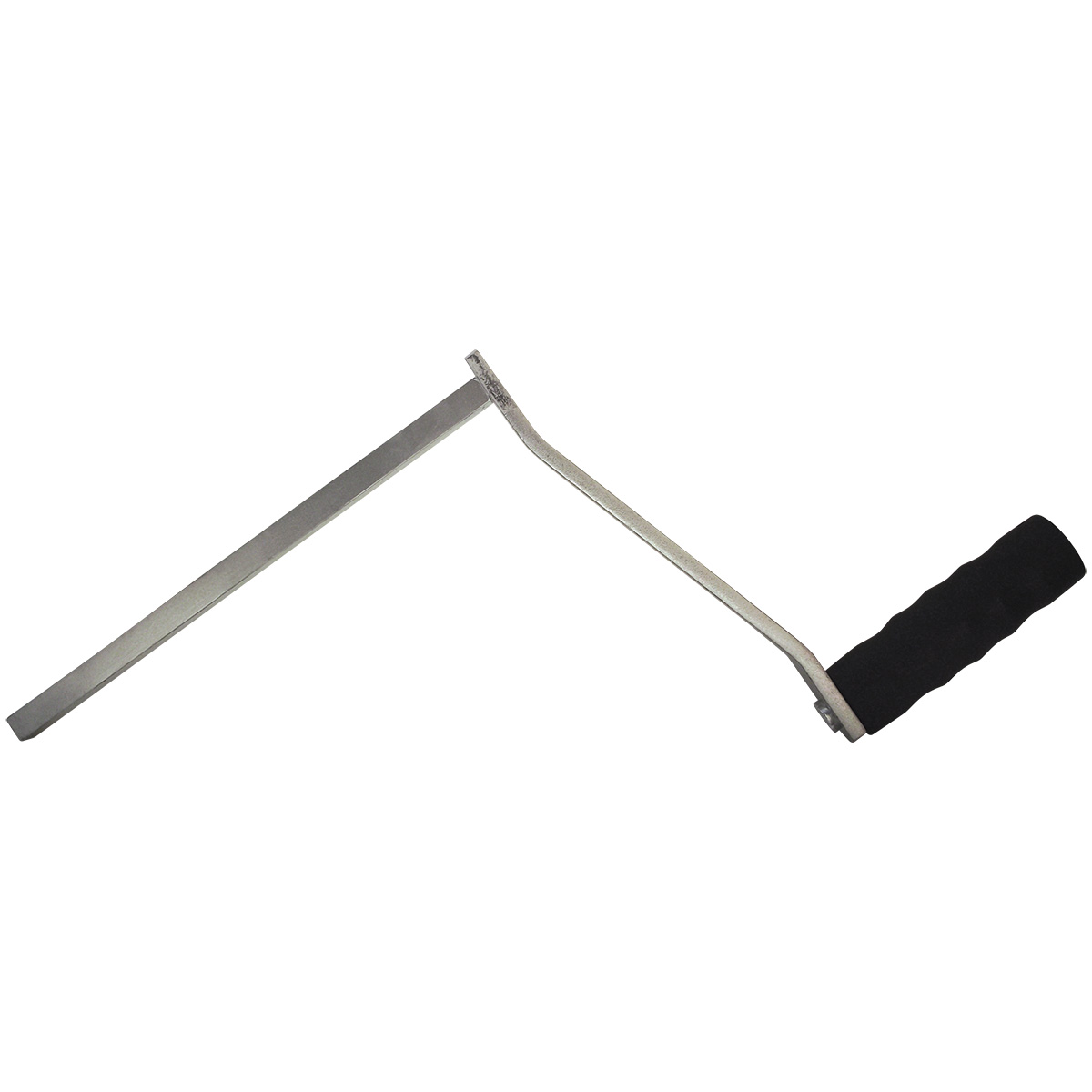

Handle only $ 50
