Tapered Aluminum Flagpoles – Internal Halyard

$1,819.00$18,019.00

Internal Halyard – Flag raising and lowering device concealed on inside of pole reducing halyard noise and providing greater security.

Standard color is Satin (Silver)

Colors available for extra cost: Clear Anodized, Bronze Anodized (Call To Order)



Clear
SKU: fppc07 Category:

Description



Ground Set, Cone Tapered Aluminum, Internal Halyard Flagpoles

Vanguard Series IH has the flag raising and lowering device concealed on inside of the flagpole reducing halyard noise. On 20′ through 40′ a Cam-Action Cleat is located behind a lockable access door providing added security.

The 50′ through 80′ Deluxe IH Series flagpoles have an M-Winch mounted inside the pole operable only with a removable crank handle.

Standard Color is Satin (Silver)

Available at extra cost: Clear Anodized, Bronze Anodized (Call to Order)

Popular sizes listed, many other sizes available.

Description & Prices: Standard Satin Color

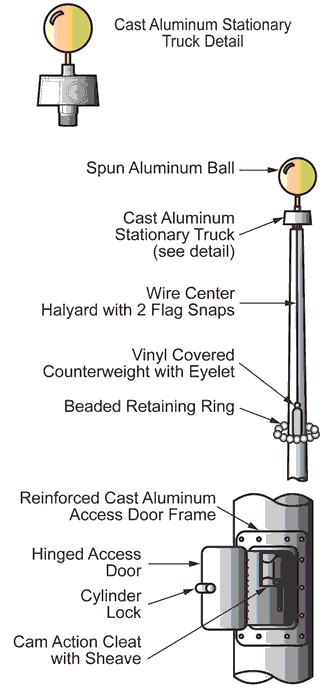

Vanguard IH Series: With Cam Action Cleat Inside flagpole

20′      .125 Wall    5″  Butt Dia.    Accommodates    4′ x 6′    Flag   $ 1819

25′      .125 Wall    5″  Butt Dia.    Accommodates    4′ x 6′    Flag   $ 1979

30′      .156 Wall    5″  Butt Dia.    Accommodates    5′ x 8′    Flag   $ 2469

35′      .156 Wall    6″  Butt Dia.    Accommodates    6′ x 10′  Flag   $ 2939

40′      .156 Wall    7″  Butt Dia.    Accommodates    8′ x 12′  Flag   $ 3989

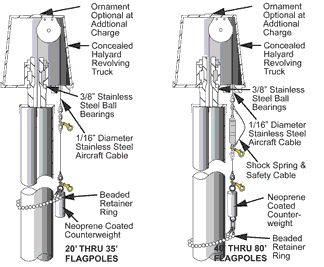

Deluxe IH Series: With M-Winch

20′       .125 Wall   5″  Butt Dia.    Accommodates     4′ x 6′    Flag   $ 2069

25′       .125 Wall   5″  Butt Dia.    Accommodates     4′ x 6′    Flag   $ 2229

30′       .156 Wall   5″  Butt Dia.    Accommodates     5′ x 8′    Flag   $ 2749

35′       .156 Wall   6″  Butt Dia.    Accommodates     6′ x 10′  Flag   $ 3889

40′       .156 Wall   7″  Butt Dia.    Accommodates     8′ x 12′  Flag   $ 4839

50′       .188 Wall   8″  Butt Dia.    Accommodates    10′ x 15′ Flag   $ 6119

60′       .188 Wall  10″ Butt Dia.    Accommodates    12′ x 18′ Flag   $ 8589

70′       .312 Wall  10″ Butt Dia.    Accommodates    15′ x 25′ Flag   $11909

80′       .375 Wall  12″ Butt Dia.    Accommodates    20′ x 30′ Flag   $18019

Includes the following accessories:

  • Attractive cone tapered aluminum satin finish(other colors available at extra cost)
  • Solid braided polypropylene halyard on 20′ through 40′ Vanguard IH (Stainless steel cable on 50′ through 80′ Deluxe IH )
  • Retainer ring with 1″ balls and counter weight, neoprene coated to match pole
  • Foundation sleeve
  • Cast aluminum truck with pulley
  • Cam Action cleat behind lockable access door on 20′ through 40′ Vanguard IH (M-Winch with Crank Handle on 50′ through 80′ Deluxe IH)
  • Swivel flag snaps with vinyl covers
  • Gold anodized ball ornament



Professional installation is Optional in northern Colorado & southern Wyoming. If you choose to have us install we can visit your site to determine flagpole location instructions.

We can provide FREE consultation with you or your contractor to assure proper self installation.

CALL TO ORDER INSTALLATION
